Low voltage 12V waterproof hard light bar 5630 potting glue fully waterproof hard light bar 12V aluminum lamp with potting glue

Product name	Silicone waterproof super bright 5630/5050/5054/7020/4014
Model No	EJX-B18W-Y144-4014-12V-IP67
Size	1000MM
Power	10W 18W
LED type	SMD5630/5050/5054/7020/4014
Brightness	2700lm
Working Voltage	DC12V
PCB material	Aluminum
Thickness of PCB	1mm
Bean Angle	120 degree
Warranty	2 years
Packing	10pcs/pack,150pcs/ctn,13.5KGS/ctn, carton size:100*20*22cm

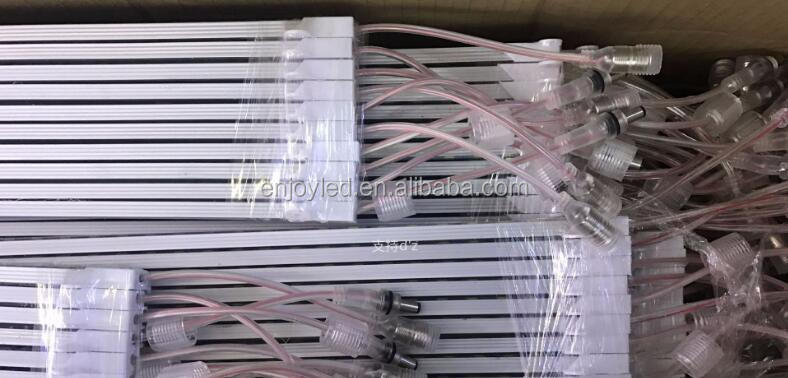

  Remarks: This product has 3 connection heads, 1- [often single head-red and black wire], 2- [DC head-black connector], 3- [waterproof connector] without remarks, the default single head red and black wire . Another customizable double-headed outlet. [Outlet can choose red and black wire double head red and black wire +0.1USD, DC head black cable +0.1USD double head out +0.2USD, waterproof connector single head +0.4USD head +0.8USD customization, please contact the me to change the price ] Model: 5630/5050/5054/4014/7020/5630 double row
Specification: 1 meter 1PCS or 0.5 meter 1PCS
Voltage: 12V
Power: 18/10W each
Number of lights: 72 leds/meter 36 leds/0.5 meters Double row 144 leds/meter
Chip: Sanan chip
Circuit: a circuit of 3 lights
Bottom plate: white bottom plate, board width 12MM
Process: waterproof IP67
The conventional single-row one meter is 72 leds , the double-row one meter is 144 LED leds, and the half-meter single row is 36 leds. Silicone waterproof, super bright 5630/5050/5054/7020/4014 chip, support size customization, the lamp belt is connected to 12V, note: Do not use other voltages, otherwise it will burn out! The lamp belt is fully waterproof and can be used outdoors. The waterproof performance is very good!     1. backlight of fabric light box 2. Cabinet light 3. Counter light 4. Illuminated display light box Single light fabric light box

Contact us if you need more details on Silicone Waterproof Super Bright 5630/5050/5054/7020/4014. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Good Price Cold White LED bar Light Ip67、China Led 3mm 4mm 5mm 6mm 8mm 12mm Ultra Thin Bar Led Strips. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : LED bar
