3 Ways Parallel Connection LED Connector

  • 3 Ways Parallel Connection LED Connector
  • 3 Ways Parallel Connection LED Connector
  • 3 Ways Parallel Connection LED Connector
  • 3 Ways Parallel Connection LED Connector

3 Ways Parallel Connection LED Connector

    Unit Price: 0.377 USD
    Payment Type: T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 14000 Piece/Pieces
    Delivery Time: 30~90 Days
    Productivity: 40,000, 000PCS/Year
    Brand: BELEKS
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 40,000, 000PCS/Year
    Certificate: ISO9001:2015
    HS Code: 85369019
    Port: JIANGMEN,YANTIAN/SHEKOU,NANSHA

Basic Info

Model No.: TL-103CV/0(A)

Product Description

Materials:

Housing: polyamide66(v2), clamping unit: copper & stainless steel


Packing info:

100 pcs per bag, 10 bags per carton, carton size: 57X14.4X17.2 cm, net weight: 6kg, gross weight: 7kg

WHO WE ARE?

  • Krealux is a top manufacturer of terminal blocks, wire connectors, junction boxes & cord line switches, an ISO9001-2015 approved company with 30+ years experience.
WHAT WE DO?
  • We manufacture products approved by CE/VDE/UL/ENEC/KEMA-KEUR/SAA/CB/CQC, with 100+ patents.
WHY CHOOSE US?
  • DEKRA & UL approved witness lab(distinguished advantage to ensure product quality).
  • 300+ experienced staff.
  • 25000 square meter production area.
  • Swiss imported high-precision tooling machines, injection & punching machines, self-designed & self-developed automatic assembling machines.
As a conclusion, we supply products with top quality at most competitive price. Our products have become best sellers in EU & US. For more please visit: www.krealux.com.




Specification:

Item No. TL-103CV
Electrical Data
IEC/EN
Rated Voltage 0-42V DC
Rated Current (A) Input 9
Output 1.5
Ambient Temperature Polyamide 66 0~40
Connection Data
Wiring Capacity IEC/EN
Input Rigid Conductor 0.34-0.75mm²
Tin-bonded Flexible Conductor 0.34-0.75mm²
Flexible Conductor with Copper Clamp 0.5-0.75mm²
Output Rigid Conductor 0.2-0.5mm²
Tin-bonded Flexible Conductor 0.2-0.5mm²
Flexible Conductor with Copper Clamp 0.5mm²
Strip length (mm) 8
Means of connection push-in
Rewirable
Number of terminals multiway
Number of connection points 3
Means of Fixing screw fixed
Materials
Insulation Materials Designation Polyamide 66
Flammability class UL 94V-2
Clamping Unit brass, stainless steel
Packing Quantity (pcs/carton)
1000

Drawing:

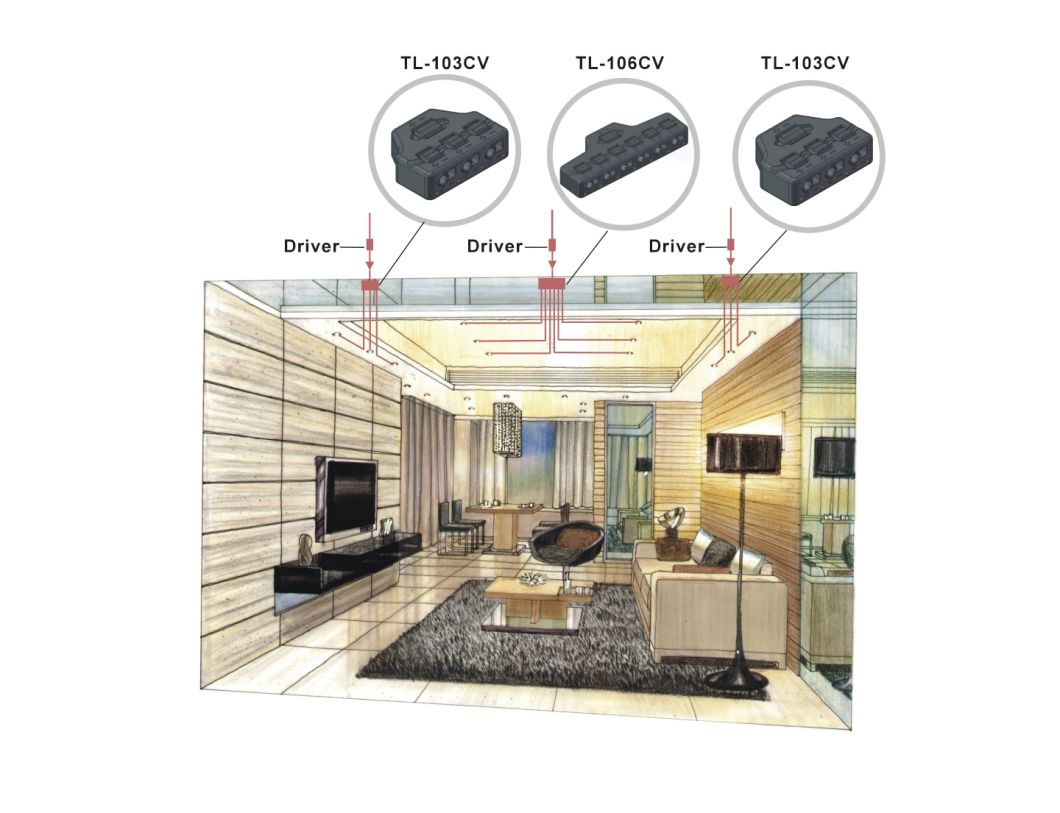

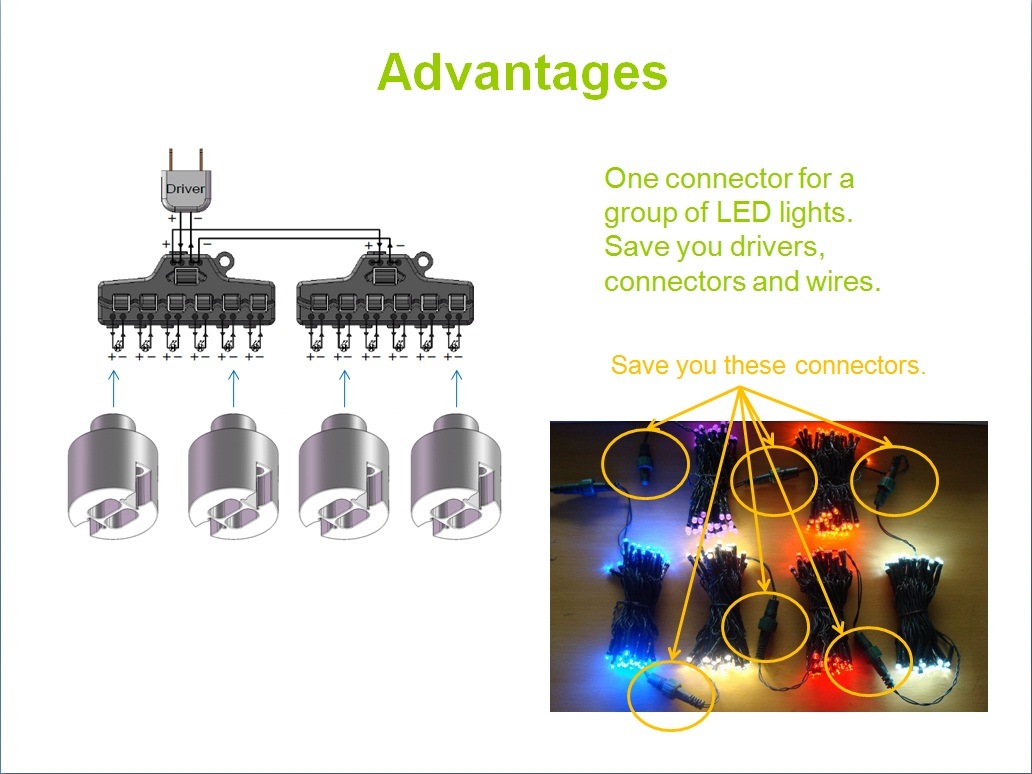

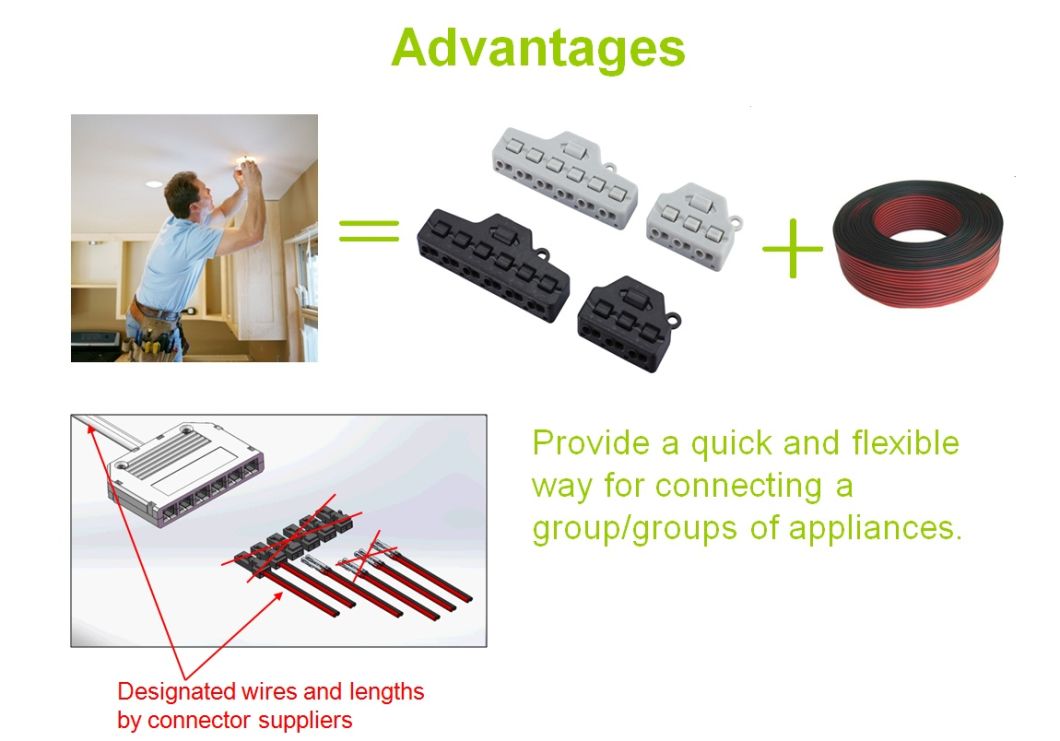

LED Connector System for Parallel and Series
